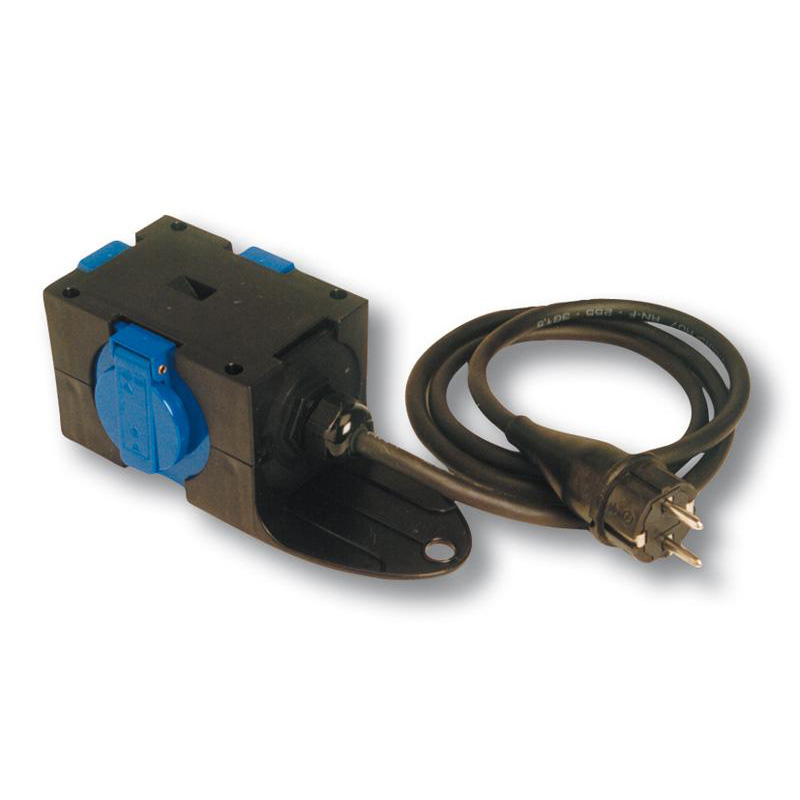

Plastic Mobile Small Distribution Boards
Produktbild
Bild 189
Bildergalerie
Bild 189Bild 191
Vorspann

Portable, easy-to-handle, and robust small-type current distributors with three different housing sizes and designs.

The distributors can be configured to meet the individual requirements of the customer and can be supplied with or without circuit protection and RCDs.

Inhalt

M-St. Anton:

  • Robust design, made from impact-resistant polyamide
  • Space-saving and easy to store thanks to compact design
  • With suspension bracket
  • Wired ready for connection
  • For use on building sites and in workshops etc.
  • Protection rating IP44



M-Imst:

M-Imst:

  • Portable, easy-to-handle, robust plastic distributor, made from impact-resistant polyamide
  • Housing dimensions: HxWxD = 200x197x197 mm
  • Max. rated current 32 A 5p 400 V
  • Max. 8 slots (connector plugs + 6 outlet sockets/supply cable + 7 outlet sockets)
  • Inspection window for up to 8 MCBs possible in housing lid
  • V2A handle
  • Winding device for connection cable
  • Space-saving storage - stackable distributor
  • Wired ready for connection
  • Protection rating IP44



M-Pegasus:

  • Compact, modular design enables a multitude of variants and outward appearances
  • Can be used as a suspended distributor or mobile distributor
  • The optimally aligned installation dimensions of the components give rise to a large number of assembly options on 6 mounting surfaces
  • Combination options:
    CEE sockets from 16 A 3p to 32 A 5p with various contact-protection safety sockets, fused or not, with integrated air connection etc.
  • Versatile usage possibilities:
    As a practical building site distributor, a distributor for events, or an overhead power supplier for extremely varied work stations in production facilities, workshops, and households.
  • Inlets:
    Cable glands and wiring to terminals on the cover plate (also possible for multiple circuits), CEE connectors, device cables
  • Outlets:
    CEE socket to 32 A, contact-protection safety sockets (as per Austrian/German, Belgian/French, Danish, English, or Swiss standards), IT sockets (LAN, phone sockets etc.)
  • Protection rating IP44



St.-Anton socket adapters and small-type distributors

Type Order number Connected load kVA Power suplly SSockets RCDs Weight approx. kg



CEE-plug 5p400V CEE-supply cable H07RN-F CEE-Sockets

      A A/m/mm² 16A5p 400V6h 32A5p 400V6h 63A5p 400V6h Socket 250V

M-St. Anton 16/3-0 P9430411 11 16   3        - 0,9
M-St. Anton 16/1-2 P9430402 11 16   1     2  - 0,9
M-St. Anton 16/0-3 P9430412 11 16          3  - 0,8
M-St. Anton 16/1-2/1,5M P9430715 11   16/1,5/1,5 1     2  - 1,2
M-St. Anton 16/1-2/PW *) P9430452 11 16   1     2  - 0,9
M-St. Anton 16/0-3/1,5M/PW *) P9430429 11   16/1,5/1,5        3  - 1,2
M-St. Anton 16/3-0/1,5M/PW *) P9430718 11   16/1,5/1,5 3        - 1,2
M-St. Anton 32/1-0 P9436422 22 32   1        - 1
M-St. Anton 32/1-0/PW *) P9436432 22 32   1        - 1



M-Imst



Type Order number Connected load kVA Power supply Sockets RCDs Weight approx. kg



CEE-plug 5p 400V CEE-supply cable H07RN-F CEE-Sockets

      A A/m/mm² 16A5p 400V6h 32A5p 400V6h 63A5p 400V6h Socket 250V

M-IMST 16/2-4/OF P9030010 11 16   2     4   2,8
M-IMST 16/2-5/2M P9030004 11   16/2/2,5 2     5 40/0,03A 3
M-IMST 16/2-5/2M/OF P9030020 11   16/2/2,5 2     5   2,9
M-IMST 16/2-5/2M P9030004 11   16/2/2,5 2     5 40/0,03A 3
M-IMST 16/2-4 P9030014 11 16   2     4 40/0,03A 3
M-IMST 32/11-3/2M P9030117 22   32/2/2,4 1 1   3 63/0,03A 3,1
M-IMST 32/11-2 P9030109 22 32   1 1   2 63/0,03A 3



M-Pegasus



Type Order number Connectes load kVA Power supply Sockets RCDs Weight approx. kg PDF



CEE-plug 5p 400V

CEE-supply cable H07RN-F CEE-Sockets

      A A/m/mm² 16A5p
400V6h
32A5p 400V6h 63A5p 400V6h Socket 250V

M-Pegasus 32/22-0/AG P9033001 22 Connecting terminal   2 2       2,3 tl_files/frame/pdf.png
M-Pegasus 32/13-0/AG P9033005 22 Connecting terminal   1 3       2,3 tl_files/frame/pdf.png
M-Pegasus 16/0-4/230V/AG P9033008 3,6 Connecting terminal         4   1,9 tl_files/frame/pdf.png
M-Pegasus 32/2-4/AG P9033031 22 Connecting terminal   2     4   2,3 tl_files/frame/pdf.png
M-Pegasus 16/2-2/2M/SF P9034003 11   16/2/2,5 2     2   2,3 tl_files/frame/pdf.png
M-Pegasus 16/1-2/SF P9034010 11 16   1     2   1,9 tl_files/frame/pdf.png
M-Pegasus 32/11-2/2M/SF P9034030 22   32/2/4 1     2   2,3 tl_files/frame/pdf.png
M-Pegasus 16/0-3/2M/SF P9034054 11   16/2/2,5       3 40/0,03A 2 tl_files/frame/pdf.png
